LNK-LR-03A LIFERAFT LIGHT

  • Lithium battery-powered
  • MED, CCS, USCG approved
  • Far exceeds SOLAS requirements
  • Exterior Light: ≥15h operation time over 4.3cd at -30°C
  • Excellent waterproof and low temperature performance
  • Compact size, the inner light is integrated with the main body
  • Easy simple installation, just use included clip to fix the main body
SKU: TS-44498 Categories: ,

Description

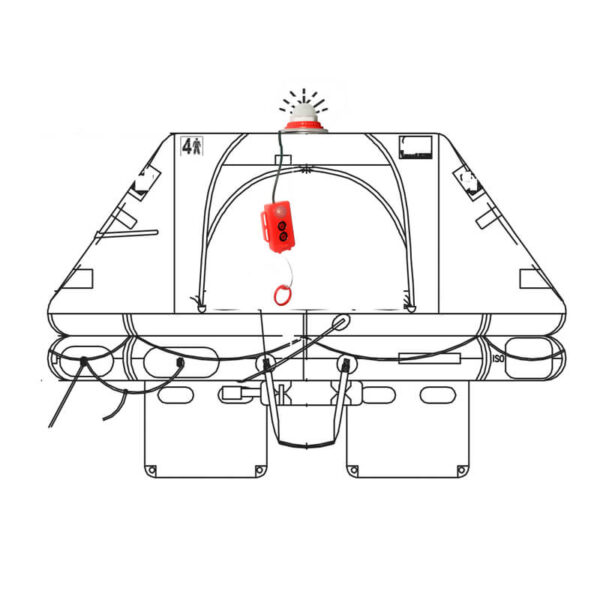

The LNK-LR-03A Liferaft Light is a lithium battery-powered emergency light designed for installation with liferafts. Upon liferaft inflation, the “O” shape ring on the light is pulled out, triggering the opening of the switch clip, which automatically activates both the exterior and interior lights. The exterior light, positioned on the top of the liferaft canopy, emits a flashing signal with a light intensity exceeding 4.3cd, continuously indicating the liferaft’s position. Simultaneously, the interior light, integrated into the light’s main body, provides a steady 0.5cd light for reading instructions and basic illumination. Independent manual switches on the light’s main body allow for separate control of the external and internal lights. Remarkably, the light excels in low-temperature conditions, with the exterior light capable of working for at least 15 hours at -30℃ while maintaining a light intensity exceeding 4.3cd.

Parameter

  • Battery: Lithium battery
  • Light source: LED
  • Chromaticity: White
  • Function: Exterior: Flashing  | Interior: Steady
  • Flash Frequency : 50~70times/min
  • Exterior Light: Min. 4.3 cd
  • Interior Light : Min. 0.5cd
  • Operation time: ≥15h over 4.3cd at -30℃
  • Working Temperature: -1℃ ~ +30℃
  • Storage Temperature:  -30℃ ~ +65℃
  • Expiry Date: 5 years
  • Dimension: Battery Body: 71.5*44.7*24.5mm | Lamp Cover: Ф62.5*42mm
  • Weight: ~119g
  • Connection Wire Length: External light 1250mm
  • Activation: Automatic when liferaft is inflated. Both exterior and internal light can be turned off and on by manual switches.
  • Performance: Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof,  Water-proof
  • Environment Performance: Meet RoHS and asbestos-free requirements
  • Standards: MSC.81(70) as amended, USCG161.101, IEC 60945, ISO 24408
  • Certifications: MED, USCG, CCS
